Tesla Powerwall Solar Battery Series
Made By Tesla

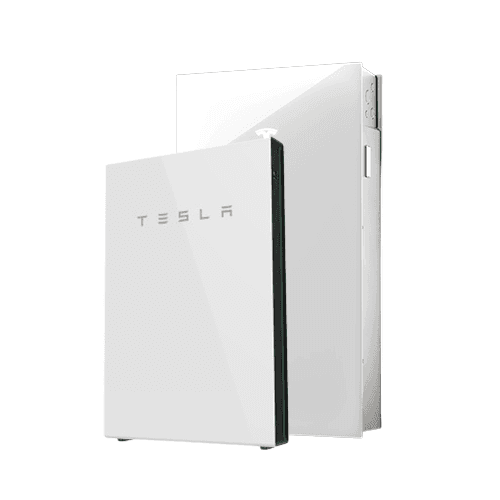

The Tesla Powerwall is a series of rechargeable lithium-ion battery systems designed to integrate with solar panels or the Tesla Solar Roof. It was introduced by Tesla Energy, a new division of Tesla that capitalized on its expertise in battery technology for home us.
What is the Tesla Powerwall Solar Battery Series
The Tesla Powerwall is a series of rechargeable lithium-ion battery systems designed to seamlessly integrate with solar panels. It was introduced to the market in 2015 by Tesla Energy, a new division of Tesla that capitalized on its expertise in battery technology and manufacturing efficiencies from electric vehicle (EV) production
Primarily tailored for residential and light-commercial use, Tesla Powerwall solar systems store surplus solar-generated power for later use or as backup protection in the event of grid outages. Key features of all Powerwall battery models include a sleek and aesthetic design, a 13.5 kWh (kilowatt-hour) capacity, performance monitoring, scalable modules, and seamless backup protection. Depending on the model, Powerwall batteries come with or without an integrated inverter. Powerwall installation is facilitated by a Tesla Certified Installer and requires the installation of a Tesla Gateway, a device that serves as the central hub of the system.
Several Powerwall models have been released since Tesla entered the solar market. The original Powerwall was succeeded by the improved Powerwall 2 in 2016 (later updated in 2020), offering greater capacity, output, and a more compact design. The Powerwall Plus (+) was introduced in 2021 as a DC-coupled hybrid inverter system, unlike the previous Powerwall 2 which was AC-coupled. The Powerwall 3 was released in 2024 as a DC-couple hybrid inverter with an increased output power of 11.5 kilowatts (kW).
What are the Features of the Tesla Powerwall Battery Series?
The 7 main features of the Tesla Powerwall series are listed below.
- Easy Installation: Installation of the Tesla Powerwall battery series is easy and hassle-free. The various Powerwall models like the 2, Plus (+), and 3 are installed indoors and outdoors and can be easily mounted on the floor or against the wall, depending on your local code. The installation process of Tesla Powerwall batteries involves a site assessment, mounting the system and wiring it correctly, setting up a Tesla Backup Gateway or Backup Switch, and other major parts of the photovoltaic (PV) system. Whilst it’s technically possible to DIY install a Powerwall, in most cases it’s highly recommended for the installation to be performed by a Tesla Certified Installer.
- Sleek and Compact Design: Tesla Powerwall batteries flaunt a sleek, compact, and minimalistic design, making them versatile for all home styles and solar systems. For example, the Powerwall 2 measures 1150 mm x 753 mm x 147 mm and weighs 114 kg. This modular construction features versatile mounting options, giving you the complete freedom to power all your home appliances. The Powerwall 3 continued this sleek and compact design trend with the added benefit of an integrated solar inverter, combining the separate items into a single unit. Tesla Powerwall batteries are water and dust-resistant, making them easy to install outside a shed or in a garage.
- Optional Integration with Existing System: Depending on the model, Tesla Powerwall batteries are able to integrate with either a new or existing solar system. Since Tesla Powerwall 2 batteries are AC-coupled, they are compatible with all types of inverters, including SMA, Fronius, SolarEdge, Enphase Encharge, and more. Note that Tesla Powerwall 3s cannot be added to any other inverter brand, or even existing Powerwall 2 and Plus systems.
- Optional Built-in Inverter: The Tesla Powerwall 3 and Powerwall Plus (+) feature an integrated solar inverter, which allows solar panels to be connected directly for increased efficiency. A Tesla Powerwall Plus is essentially a Powerwall 2 and a Tesla Inverter bundled into one system. The Powerwall 3 represents a significant advancement in that it combines the inverter and battery into a single unit. This improves the compactness of the unit and makes installation easier. In both the Powerwall Plus and Powerwall 3, the inverter functions to directly convert DC power generated by solar panels into AC-power, which is easily utilized by your home appliances and reduces conversion losses. The roundtrip efficiency of the Powerwall 3, for example, is 97.5%.
- Constant Battery Performance Monitoring via the Tesla App: Tesla Powerwalls work with the Tesla One app to make monitoring your day-to-day energy production and consumption easy. The app provides real-time information about your system’s performance and allows you to alter the settings as required. Other key features of the Tesla app include the energy screen, which shows the actual time your solar panel starts producing energy daily, and the impact screen, which displays customized insights regarding solar usage, power outages, and home energy usage.
- Virtual Power Plant Participation: The Tesla Powerwall 3 boasts a new feature that allows users to participate in the Virtual Power Plant program (VPP), an innovative initiative to stabilize the electrical grid during high-demand periods. By participating in the VPP, Tesla Powerwall 3 owners earn compensation (usually $10 per Powerwall monthly) for the energy they contribute. VPP participants help provide clean and renewable energy to the grid, increasing the value of their investment in Powerwall batteries.
- Storm Watch Mode: Tesla Powerwall 3 has a Storm Watch Mode feature, designed to ensure that your home has power during severe weather events. When your local weather service issues a severe alert, Storm Watch Mode is automatically activated to ensure that Powerwall 3 charges to a maximum capacity to prepare for potential grid outages. You will receive the activation alert via the Tesla app, informing you that your Powerwall is charging to full capacity. Storm Watch Mode remains activated until the weather event ends, and your Powerwall will return to its normal behavior.
View Tesla Powerwall Variants
The three main Powerwall models currently in circulation are the Powerwall 3, Powerwall 2, and Powerwall Plus (+). These three models differ somewhat in terms of their capabilities and the type of battery cells used.
Below is more information about the three main Powerwall models currently on the market.
- Tesla Powerwall 2: The Powerwall 2 has a sleek design and 13.5 kWh capacity, making it ideal for residential solar storage requirements. Unlike the Powerwall Plus and 3 which only scale up to 4 units, the Powerwall 2 is scalable up to a whopping 10 units (with a max output of 135kWh) and stackable up to 6 units. The Powerwall 2 comes without an integrated inverter, facilitating easy integration into existing solar systems. It’s able to handle up to 116A (amps) when starting up with the rotor locked. The Powerwall 2 is based on NMC (Nickel Manganese Cobalt) chemistry, which provides a balance of energy density, power output, and long cycle life.
- Tesla Powerwall Plus (+): The Powerwall+ (Plus) is a hybrid DC-coupled battery system that features 13.5 kWh capacity. It consists of a solar battery and a solar inverter bundled into a single product (unlike the Powerwal l3 where the inverter is fully integrated into the battery system). This makes it difficult to retrofit the Powerwall Plus to an existing system. Additionally, the Tesla Powerwall+ offers a surge capacity of 118A (amps). Surge capacity refers to the maximum power an inverter is able to supply for a brief period, ensuring the Powerwall Plus can simultaneously power multiple devices without overloading. Like the Powerwall 2, it uses Lithium NMC batteries.
- Tesla Powerwall 3: Like the Plus and 2 models, the Powerwall 3 has 13.5 kWh capacity. Its continuous output power of 11.5kW is almost double that of the previous models, and it boasts 6 MPPT (Maximum Power Point Tracking) inputs. The Powerwall 3 is a hybrid DC-coupled battery system where the inverter and battery are combined into a single box. Due to the integration of the inverter, the Powerwall 3 is designed for new systems and is not able to be integrated into existing systems or used with previous Powerwall battery models. It has a surge capacity of 150 amps. Unlike the Powerwall 2 and Plus, Powerwall 3 lithium-ion batteries are based on LFP (Lithium Iron Phosphate) chemistry.
Customer Reviews for Tesla Powerwall
Customers have reviewed the Tesla Powerwall 0 times via SolarCompare for an average rating of 0 stars. View recent customer reviews below:
What are the Benefits of the Tesla Powerwall?
Tesla Powerwalls have several advantages that make them attractive options for homeowners seeking energy independence. The main advantage of using a Powerwall solar battery is that it provides backup protection during grid outages. Other key advantages of Tesla Powerwalls include a sleek design, backup protection during outages, time-of-use load shifting, and greater energy independence.
More information about the four main benefits of Tesla Powerwalls is listed below.
- Sleek and Compact Design: Tesla is known for making products that buck existing trends, both technologically and in terms of design. Whereas other solar batteries and hybrid inverters tend to be visually unremarkable, the Powerwall series is designed to be sleek, compact and aesthetically pleasing. The new Powerwall 3 expands on this premise, combining a battery and inverter into a single unit. It has dimensions of 43.25 in x 24 in x 7.6 inches and weighs 287 lbs. Powerwall batteries are modular, allowing them to be stacked easily. Their durable design is suitable for both indoor and outdoor use.
- Backup Protection During Grid Outages: The Tesla Powerwall series serves as a reliable battery backup system for your home. When the grid experiences outages, Powerwall batteries seamlessly kick in, providing continuous power to essential appliances and devices. This ensures that you remain connected and comfortable even during blackouts. In the case of the most recent Powerwall 3, it’s possible to power larger home appliances like dryers and air-conditioners using only a single battery as backup power. This is due to its increased output of 11.5kWh.
- Time-of-Use Load Shifting: The Powerwall offers a versatile feature called Time of Use (TOU) scheduling, sometimes called Time-Based Control, or load shifting. TOU is an energy optimization method for maximizing savings with your Powerwall. It involves charging the Powerwall when energy costs are low and using it to power your home when energy costs are high. This is based on utility rate plans that vary prices depending on the time of day, day, or season. To enable Time-Based Control, set up your utility rate plan in the Tesla app. Your Powerwall will then charge from the grid or solar during low-cost periods and discharge during high-cost periods, reducing your overall energy expenses. An alternative to Time-Based Control is Self-Powered mode, which prioritizes using stored energy from the Powerwall to power your home, especially during times when solar production is low or during a power outage.
- Greater Energy Independence: Tesla Powerwall offers increased energy independence. With the Powerwall, you become less reliant on the grid, which is particularly beneficial for saving on utility bills and powering appliances during power outages. The Powerwall stores excess solar energy generated during the day, allowing you to use it at night or during cloudy periods. By maximizing self-consumption, you reduce your dependence on external energy sources.
What are the benefits of the new Powerwall 3?
The updated benefits of the Tesla Powerwall 3 include several key features that enhance its performance and usability. The four main benefits of the Powerwall 3 are listed below.
- Greater Continuous Power Output: One significant improvement that comes with the Powerwall 3 is boosted continuous power output, offering more than double the continuous power of its predecessors. Despite maintaining the same energy storage capacity as the Powerwall 2 and Plus models, the Powerwall 3 delivers 11.5 kilowatts (kW) of continuous power output, which is more than double that of the Powerwall 2 at 5 kilowatts (kW) and the Powerwall Plus (+) at 5.7kW of output.
- Able to Provide Backup Power From a Single Battery: Unlike previous Powerwall models, the Powerwall 3 is able to provide backup power with only a single battery unit installed. When paired with solar panels, the Powerwall 3 is useful for powering devices throughout your entire home. Technically, it’s even able to charge an electric vehicle (EV) station (though this is likely to decimate the battery). The Powerwall 3 is at its most advantageous during grid outages, as well as providing increased energy control, and potential savings through a Virtual Power Plant system that shares excess solar energy with your community.
- Integrated Inverter: The Powerwall 3 stands out from the Powerwall 2 and Powerwall Plus (+) due to its fully-integrated inverter. While the Powerwall Plus is also a hybrid system, its inverter is not integrated into the same unit as with the Powerwall 3. This integration enhances the system's appearance and simplifies installation. The integrated inverter converts DC power directly into AC electricity, minimizing energy loss and boosting overall efficiency. This design eliminates the need for separate inverters, making the system more streamlined and improving energy savings.
- Easy to Stack Additional Units: The Powerwall 3 is designed for stackable installation, allowing users to expand their power storage capacity easily by adding up to 3 additional units, allowing the capacity of the system to be scaled to 54 kWh. This modular approach enables users to customize their energy storage needs according to their requirements, making it a scalable solution for varying power demands. However, for ultimate scalability the Powerwall 2 is the better choice, as it scales up to 10 units (135kWh)
In terms of compatibility, the Powerwall 3 is not backward compatible with existing Powerwall setups but is compatible with all major solar inverter brands and supports various system sizes. It’s able to be added to other Powerwall 3 units but cannot be integrated with Powerwall 2 or Powerwall+ batteries.The Powerwall 3 comes with a 10-year warranty like its predecessors, ensuring long-term reliability and performance for users.
What are the drawbacks of the Tesla Powerwall series?
While Tesla Powerwalls have significant advantages, there are some disadvantages to consider before purchasing them. The four main disadvantages of the Powerwall are high installation costs, the requirement for multiple units to achieve off-grid living, inconsistent customer service and lack of choice of which model you receive.
More information about the four main disadvantages of the Tesla Powerwall series is below.
- High Installation Costs: While the Powerwall itself has a reasonable price, installation costs significantly increase the overall expense. It typically costs around $10,000-11,000 to install a single Powerwall battery, about $5000 of which goes towards the installation service itself.
- Multiple Units for Off-Grid: Achieving complete energy independence often requires multiple Powerwall batteries, especially for the Powerwall 2 and Plus models. To power a home off-grid for an extended period, homeowners are likely to need to invest in several units, which comes with extra cost. That being said, the Powerwall 3 has a higher continuous output of 11.5kW, meaning it’s able to power large home appliances with just one battery unit during an outage.
- Inconsistent Customer Service: Some customers have reported communication issues with Tesla during the Powerwall installation process. Delays or miscommunications sometimes lead to customer frustration and longer wait times for installation.
- Inability to Choose Battery Model: With the arrival of the Tesla Powerwall 3, many new customers are eager to receive the newest version. However, in many cases, customers are not informed in advance whether they will receive the updated Powerwall 3 version, or a previous Powerwall 2 or Powerwall Plus (+) model. This is a drawback for customers who specifically want the latest model. For customers who are determined to receive a Powerwall 3, it’s best to wait for a while until the existing Powerwall 2 models are used up and no longer available. That being said, many customers report receiving the Tesla Powerwall 3 automatically already.
Does the Powerwall 3 come with downsides compared to previous Powerwall models?
While the Tesla Powerwall 3 is the most improved Powerwall model in some ways, it has some potential downsides compared to previous models such as the Powerwall 2 and Powerwall Plus, including how it integrates into photovoltaic (PV) systems. The four main drawbacks of the Powerwall include incompatibility with previous Powerwall models like 2 and Plus, incompatibility with non-Tesla inverter brands, the duration of power supply and reduced scalability.
More information on the four main disadvantages of the Powerwall 3 is listed below.
- Incompatibility with Previous Powerwall Battery Models: One of the main drawbacks of the Powerwall 3 batteries is that they aren’t able to be added to existing Powerwall 2 or Powerwall Plus setups. This is mainly because the Powerwall 3 is a hybrid battery system, meaning it has a built-in inverter. Homeowners with existing solar panel systems connected to Powerwall batteries would need to upgrade their entire system to use the Powerwall 3, which is costly.
- Incompatibility with non-Tesla inverter brands: The Tesla Powerwall 3 isn’t designed to be paired with non-Tesla inverter brands, given that it already has an inverter integrated into the system. Whilst the Tesla website claims that the Powerwall 3 is able to be added to any existing photovoltaic (PV) system, this would mean replacing whatever existing inverter you have, at a financial loss. The Powerwall 2, on the other hand, is compatible with all major inverter brands. On the plus side, the Powerwall 3 is able to be combined with any brand of solar panels so long as they meet the necessary voltage requirements.
- Duration of Power Supply: The Powerwall 3 (PW3) has enhanced its power output from 5 kilowatts (kW) to 11.5 kW. This means it’s able to support larger energy-consuming devices, but this improvement does not extend the duration of the power supply due to the capacity of the PW3 remaining the same as the Powerwall 2. Therefore, while the PW3 is able to power more devices during an outage, the duration for which these devices run is limited unless energy usage is strategically managed.
- Reduced Scalability: The Powerwall 3 is scalable up to 4 units (providing around 54 kW of power), which is significantly less than the previous Powerwall 2 which was scalable up to 10 units (providing 135 kWh of power). However, the Powerwall 3 has a higher continuous output power of 11.5 kilowatts, making each unit more powerful overall.
Get Prices From Local Solar Companies
Get competitive quotes from trusted local and national solar companies.
Energy Storage (Capacity)
One of the limits of the Powerwall Series, especially the Powerwall 3, is its limited capacity. All available models in the Powerwall series provide 13.5 kWh of energy storage. But because the Powerwall 3 boasts a significantly higher continuous output of 11.5kW, it’s a shame that the capacity hasn’t increased to accommodate the increase in power.
| Total Energy | Usable Energy | |
| Tesla Powerwall 3 | 13.5 | 11.5 |
Power Output
In terms of performance, Powerwall batteries are highly reliable for producing steady continuous output power. The latest model, the Powerwall 3, is one of the most powerful solar batteries on the market, with 11.5 kW of continuous power output. The previous Powerwall 2 model, which has the same capacity but a lower output of 5 kW, is still a strong contender in the solar energy market.
| Maximum Power | |
| Tesla Powerwall 3 | 5000 |
Round Trip Efficiency
The roundtrip efficiency of the Powerwall 3, is 97.5%. Meanwhile the Powerwall 2 had an efficiency of 90%. Round-trip efficiency refers to the amount of energy that, after being stored and released from the battery, makes it from your solar panels to your home.
Lithium-ion batteries are highly efficient in comparison to other technologies, however the recent Tesla Powerwall 3 is a step up in efficiency once more. The Tesla Powerwall 3 and Powerwall Plus (+) feature an integrated solar inverter, which allows solar panels to be connected directly for increased efficiency. The integrated inverter converts DC power directly into AC electricity, minimizing energy loss and boosting overall efficiency.
| Round Trip Efficiency | |
| Tesla Powerwall 3 | 89% |
Dimensions
The Powerwall 3 has a height of 1099mm (43.25”) a width of 609mm (24”) , a depth of 193mm (7.6”) and weighs 130kg or 287 lb. Meanwhile the Powerwall 2 had a height of 1150mm (45.3”) a width of 750mm (29.5”) , a depth of 140mm (5.5”). Whereas other solar batteries and hybrid inverters tend to be visually unremarkable, the Powerwall series has been continously designed to be aesthetically pleasing. The new Powerwall 3 expands on this premise, combining a battery and inverter into a single unit, preventing the need for multiple units needing to be visibly installed in your home.
| Dimensions (LxWxD mm) | Weight | |
| Tesla Powerwall 3 | 1099 x 609 x 193 | 130 |
Temperature, Noise & Cooling
The older Powerwall 2 and Powerwall Plus models used a liquid cooling system, which effectively managed the heat generated during high load conditions. The Powerwall 3, interestingly, uses a fan-forced cooling system, which is a notable change from its predecessors. Furthermore, all Powerwall models are designed to operate within a broad temperature range, from -4°F to 122°F, and a 100% humidity rating. The Powerwall 3 is slightly noisier than the older models, with an operating noise of < 50 dB, where as the Powerwall 2 had an operating noise level of less than < 40 dB.
Scalability, Compatibility, & Coupling
The different models within the Powerwall series, such as the 2, Plus and 3 models, have varying levels of compatibility with existing systems, inverters, and themselves.
For example, the Powerwall 2 is compatible with most solar inverters, whereas the Powerwall Plus and Powerwall 3 is not able to be used with non-Tesla inverters because the inverter is bundled or integrated into those systems already. Unlike the Powerwall 2 and Plus, the Powerwall 3 is not even compatible with previous Powerwall models, due to the integrated inverter (which would need to be disabled for the system to work).
This means the Powerwall 3 is only available as an AC coupled battery, so if you have a hybrid inverter installed, it wouldn't be compatible with the Powerwall 3. The Powerwall 2 however is DC coupled, and is compatible with a range of inverters.
Disappointingly, the Powerwall 3 is only scalable up to four batteries, meaning four batteries can be connected in tandem. Similarly, the Powerwall plus is only scalable up to 4 batteries. The previous model, the Powerwall 2, was scalable up 10 batteries, meaning there was a bigger ceiling on potential energy storage capacity for high energy usage homes.
Warranty
Tesla currently offers a 10-year 3200 cycle warranty for the the Powerwall 3, like its predecessors, ensuring long-term reliability and performance for users. In cases where there are technical issues, the quality of repair and maintenance services for their solar batteries is usually very high, similar to the quality of installation.
The warranty offered for the Powerwall guarantees at least 70% of the original capacity by the end of the 10 years however, the real lifespan of a Tesla Powerwall varies based on usage habits, depth of discharge, and environmental conditions such as the weater.
Safety & Certification
The Tesla Powerwall 3, and the previous models such as meets 11 safety certification requirements from UL (Underwriters Laboratories), IEEE (Institute of Electrical and Electronics Engineers) and the UN (United Nations). The Tesla Powerwall's main safety certificates specific to home batteries include:
- UL 9540: Testing and certifcation against for safety regarding fire, electric shock, and chemical exposure in energy storage systems.
- IEEE 1547-2018: Ensures that the Powerwall 3 can be safely connected to the grid.
- RoHS Directive 2011/65/EU: The Tesla Powerwall doesn't use hazardous chemicals in line with EU regulation.
- FCC Part 15 Class B: Emmissions regulation set forth by the FCC preventing radio frequency emissions.
- IEEE 693-2005: The Tesla Powerwall was thoroughly tested to be able to withstand earthquakes.
How much does the Tesla Powerall cost?
The general cost of the various models within the Tesla Powerwall series is around $9,000-$15,000 including installation, before tax incentives. The total cost of Tesla Powerwalls depends on the number of units you want to purchase, your solar installer, and your location. Other factors that contribute to the total cost include fees for installing a Tesla gateway, accessories, delivery fees, and taxes. Tesla does not require that the Powerwall models are installed by its own installers, and typically local, “approved” installers charge the same amount as Tesla would have. However, Americans reduce the installation cost by benefitting from the 30% solar incentive.
What factors influence the cost of installing a Tesla Powerwall?
The cost of Tesla Powerwall models is influenced by five main factors, which are installation labor, tax credits and incentives, existing solar setup, grid connection fees, and payment options.
More information on the main five factors that affect the cost of purchasing Tesla Powerwalls is listed below.
- Installation Labor: Installation costs vary based on location and complexity. Labor charges can impact the overall cost.
- Tax Credits and Incentives: Some regions offer tax credits or incentives for installing solar and battery systems, potentially reducing the cost of installation. Colorado State Tax Credit is offered to Colorado residents who qualify for a 10% tax credit on eligible Powerwall models.
- Existing Solar Setup: Integrating the Powerwall may be more straightforward if you already have solar panels.
- Grid Connection Fees: Some utilities charge fees for connecting to the grid, affecting the overall investment.
- Payment Options: Tesla offers financing options, including loans and leases, to make the upfront cost manageable.
What is the cost breakdown of the Tesla Powerwall?
The various costs that make up the total cost of a Tesla Powerwall system installation are covered in the table below.
| Cost Factors | Powerwall 3 | Powerwall 2 | Powerwall+ |
| 1 Battery (including installation) | $13,200 | $10,400 | $11,500 |
| Accessories | $200 | $200 | $200 |
| Incentives and rebates | -30% (Federal Tax Credit ) | -30% (Federal Tax Credit ) | -30% (Federal Tax Credit ) |
| Total Cost: | = $9380 | = $7420 | = $8190 |
The exact final cost of your Tesla Powerwall depends on a number of other factors, which aren’t possible to calculate. These include cost variations associated with your location, the requirements of your specific system, the cost of solar panels associated with your Powerwall purchase and the number of batteries you purchase.
How Does the Tesla Powerwall Series Compare with Solar Battery Providers?
A comparison of the Tesla Powerwall Series with other major solar batteries series like the Generac PWRcell and the Enphase Encharge is given below.
| Factors | Tesla Powerwall(2/Plus/3) | Enphase Encharge | Generac PWRcell | Sonnen Eco 9.53 | LG Chem RESU 10H Prime | Panasonic EverVolt Home Battery |
| Energy Capacity (kWh) | 13.5/13.5/13.5 | 3.5kWh-10.8kWh | 9 kWh - 18 kWh | 10kWh - 20kWh | 19.2kWh | 9 kWh-18 kWh |
| Continuous output power (kW) | 5/5.8/11.5 | 4.8kW - 14.4kW | 3.4 kW - 7.6 kW | 3.4 kW - 7.6 kW | 5kW-7kW | 4.6 kW-7.6 kW |
| Peak power output (kW) | 7/7.6/30 | 1.92 kVa - 7.68 kVa | 4.5 kW - 9 kW | 4.8kW - 14.4kW | 7kW-11kW | 7.6kW |
| Round trip efficiency (%) | 90/90/97.5 | 96% | 90% | 81-85% | 90%+ | 89% (AC-coupled) or 94% (DC-coupled) |
| Depth of discharge | 100% | 100% | 84% | 90% | 100% | 90% |
| Scalability | Up to 10 Units/Up to 4 Units/Up to 4 Units | Up to 4 units | Up to 2 units. | Up to 3 modules | Up to 2 units. | Up to 4 units. |
| Coupling | AC-Coupled/DC-Coupled/DC-Coupled | AC-coupled | AC-coupled | AC-coupled | DC-coupled | Supports both AC and DC |
| Warranty | 10 yrs | 10-15 yrs | 10 yrs | 10 yrs | 10 yrs | 10-12 yrs |
How does Tesla Powerwall compare to other solar batteries in terms of price?
The Tesla Powerwall, which has a 13.5 kilowatt (KW) capacity, is generally priced between $9,200 and $15,000. This is relatively affordable compared to other high-end batteries with similar storage capacity, like the Sunpower SunVault, which costs $16,000-$20,000 for a single 13 kWh capacity battery.
By the same token, the Enphase IQ 10 battery costs more than the Tesla Powerwall but with less capacity. It costs between $8,000 and $11,000 for a 10.1 kWh system, which is slightly under the price of the 13.5 kW Powerwall 2 and 3. Additionally, Tesla offer a reduced price the more Powerwall units are bought with installation. For example, purchase of 4 Powerwall units brings the cost down from $11,500 to $8,125 per battery. With this, Powerwall stands out as a cost-effective choice with a higher capacity and lower overall costs. Overall, when looking at price alone, the Tesla Powerwall seems to offer the best balance between cost and usable energy capacity among these top solar battery options.
How does Tesla Powerwall compare to other solar batteries in terms of product quality?
The Tesla Powerwall is known for its advanced technology, high efficiency, and long lifespan, which make it one of the most sophisticated solar batteries on the market. When comparing the Powerwall to top solar batteries like the Enphase IQ and SunPower series, —it's evident that each offers unique features. The Tesla Powerwall 3 stands out for its advanced technology Prismatic LFP (Lithium Iron Phosphate) cells, which provide high energy density and a lifespan of 10-15 years, and are cheaper to produce than other Lithium Ion batteries.
On the other hand, the Enphase IQ utilizes Lithium Iron Phosphate (LFP) chemistry, known for its safety features such as thermal runaway prevention and safety-certified cells. Enphase IQ also offers a longer 4,000-cycle warranty compared to the Tesla Powerwall's 3,200 cycles.
SunPower, using lithium-ion phosphate, provides 25-year output protection and panel coverage, ensuring long-term reliability.
While Enphase IQ excels in safety features, and Sunpower offers the most generous solar battery warranty, Tesla Powerwall leads in advanced technology and energy density, making it a top choice for those seeking quality and reliability in solar batteries.
How does Tesla compare to other solar battery providers in terms of customer service?
Tesla customer service for solar batteries is variable. Whilst Tesla offers 24/7 customer support, some customers have reported challenges with response times and support experience when they have had issues with their products, like the Powerwall.
Whilst the customer service representatives at Tesla are typically courteous and responsive, at times the actual response time for any diagnostic, maintenance or repair work needed is significantly delayed. Competitors like Enphase IQ, Generac PWRcell and SonnenCore tend to offer more personalized customer service or faster response times. By the same token, local installers are typically able to respond more quickly to solar installation or repair requests compared to Tesla.
Tesla’s comprehensive 10-year warranty and support infrastructure are designed to effectively address issues, and problems are typically resolved in the end. The quality of repair and maintenance services for their solar batteries is usually very high, similar to the quality of installation.
How does Tesla Powerwall compare to other solar batteries in terms of maintenance and repair?
The Tesla Powerwall stands out in the solar battery market for its low maintenance requirements and ease of repair. Unlike traditional batteries that require regular upkeep, Tesla Powerwalls are designed with a self-contained ecosystem that includes remote monitoring and automatic software updates, minimizing the need for physical maintenance
Tesla’s global service network provides accessible repair services, although some users have noted longer wait times for service appointments compared to local battery companies. Tesla Powerwall’s advanced technology and infrastructure offer a streamlined maintenance and repair experience overall, but it’s important to consider potential delays in service response when comparing it to other solar batteries.
What is the manufacturing process behind Tesla Powerwall batteries?
Tesla has recently significantly changed the manufacturing process for Tesla Powerwall, by switching the battery cells from NMC (Nickel Manganese Cobalt) to LFP (Lithium Iron Phosphate) prismatic cells. LFP cells, utilizing abundant materials like iron instead of nickel and cobalt, are more cost-effective, durable, and safer. This switch has resulted in a heavier unit with a similar energy capacity, characteristic of LFP systems which are less energy-dense than high-nickel chemistry cells. The added weight is likely offset by the ability to charge LFP cells to a higher state-of-charge and maintain such a state without significantly impacting longevity, similar to the Tesla Model 3 LFP and NCA versions.
Is the Tesla Powerwall 3 significantly better than the Powerwall 2?
Yes, the Tesla Powerwall 3 offers significant improvements over the Powerwall 2, more than doubling its on-grid power output from 5 kilowatts (kW) to 11.5 kW and facilitating easier installation and scalability. However, it retains the same capacity as the Powerwall 2 and is not compatible with systems using Powerwall 2 batteries already, due to its built-in inverter.
The Tesla Powerwall 3 represents a notable advancement over the Powerwall 2, featuring an on-grid power output of 11.5 kilowatts (kW), doubling the 5 kW of its predecessor. However, because the capacity of the Powerwall has not changed, existing Powerwall 2 owners may not find an immediate need to upgrade solely for increased power output.
Another key difference which makes the Powerwall 3 (PW3) superior to the Powerwall 2 is that it comes with a built-in battery inverter, allowing DC-coupling. This means that the PW3 doesn’t require an additional solar inverter to convert the DC power from solar panels into usable AC power for the home. This reduces the amount of energy losses making the Pw3 system more efficient overall compared to the PW2.
However, the Tesla Powerwall 3 is not a suitable choice for those who already have a Powerwall 2 because Powerwalls 2 use external inverters, whereas the Powerwall 3 is equipped with an integrated inverter. This incompatibility means that existing Powerwall 2 systems would need significant and costly modifications to work with the Powerwall 3.
How long does a Tesla Powerwall last?
The lifespan of a Tesla Powerwall is typically around 20 years. Under normal usage conditions, it’s expected to last about 10 years before you notice a reduction in capacity, meaning it won’t hold as much charge as it once did. In terms of how long a Tesla Powerwall is able to power your home on a single charge, it depends on the energy consumption of your appliances. For example, the Tesla powerwall is able to power a refrigerator on backup power for two days, according to Tesla’s own specifications. The warranty offered for the Powerwall guarantees at least 70% of the original capacity by the end of the 10 years. The actual lifespan of a Tesla Powerwall varies based on usage, charging patterns, and environmental conditions.
How many Tesla Powerwalls do I need to power a house?
The number of Powerwalls needed to power a house using a Tesla Powerwall depends on the energy consumption and the duration of backup required. On average, a household consumes about 30 kWh per day. Each Tesla Powerwall model (2, 3 and Plus) has a usable energy capacity of 13.5 kWh, so you would need at least 3 Tesla Powerwalls to fully power a home for a day without reducing output and without additional energy backups.
This equation is mathematically expressed below.
30 kWh/day ÷ 13.5 kWh/Powerwall ≈ 2.22 ≈ 3 Powerwalls
This is a simplified calculation, and your actual needs vary based on your individual energy usage patterns, solar energy generation, and other factors. Remember that Powerwalls are designed to stop supplying power when they reach a charging level of 10%. This is done to ensure the battery has enough power to kickstart the solar panel system when there is sufficient sunlight to generate charge.
Can you live off-grid with a Tesla Powerwall?
Yes, living off-grid with a Tesla Powerwall is feasible. The Powerwall stores energy generated from solar panels or the grid, providing a reliable energy storage solution for your home or small business. For a successful off-grid setup, it’s crucial to have an adequate number of Powerwalls to meet your energy needs, which depend on factors like home size, number of occupants, and energy usage patterns. Investing in essential components such as solar panels and inverters is also necessary. The Tesla Powerwall can help you achieve a sustainable, self-sufficient lifestyle with proper system sizing and installation.
How many Powerwalls are Needed for Backup Power?
Based on the average household consumption, two Tesla Powerwalls with 13.5kW usable energy and 5kW of continuous power, coupled with a peak power of 7kW for a short duration, are enough for power outages. However, two Powerwalls are only considered sufficient for essential loads in an average home during shorter outages of 4-6 hours. For longer power outages or home backups, multiple Tesla Powerwalls are required to increase overall capacity and power output. Tesla Powerwall 3 has 11.5 kW of power making it possible to just about backup a home with a single unit.
